Diamond polishing and planarization--- The DIASEMI way for diamond semiconductor


As power densities continue to increase in GaN power electronics, RF devices, AI accelerators, high-performance GPUs, photonic integrated circuits, and laser systems, thermal management has become one of the primary limitations on device performance and reliability. Among all thermal management materials, chemical vapor deposited (CVD) diamond offers the highest thermal conductivity available for practical engineering applications, reaching 1,800–2,200 W/(m·K), approximately five times higher than copper and more than ten times higher than silicon.

However, thermal conductivity alone does not determine the effectiveness of a diamond heat spreader. In advanced semiconductor packaging, the overall thermal resistance is increasingly dominated by the thermal boundary resistance (TBR) at the bonding interface rather than the intrinsic thermal conductivity of the diamond itself. Surface roughness, flatness, total thickness variation (TTV), and subsurface damage directly influence interface quality, bonding strength, and heat transfer efficiency.

For this reason, polishing and planarization have become indispensable manufacturing processes for semiconductor-grade diamond substrates. A poorly polished diamond substrate can significantly increase interface thermal resistance, reduce wafer bonding yield, and compromise the thermal performance of high-power electronic devices. Achieving an atomically smooth, damage-free surface is therefore as important as producing high thermal conductivity diamond.

Why Surface Quality Matters

The as-grown surface of CVD diamond is inherently rough due to competitive crystal growth during deposition. Depending on deposition conditions and film thickness, surface height variations may reach several tens of micrometers. Such surfaces are unsuitable for semiconductor packaging without extensive planarization.

Advanced packaging technologies including direct wafer bonding, hybrid bonding, metal diffusion bonding, and thin-film metallization require extremely smooth surfaces to maximize real contact area and minimize interface voids. Surface asperities create microscopic air gaps and non-uniform bonding interfaces, substantially increasing thermal boundary resistance.

For high-performance semiconductor applications, typical surface requirements include:

Surface roughness (Ra): <0.5 nm for direct bonding
Total Thickness Variation (TTV): ≤10 μm
Wafer warp: ≤10 μm
Minimal subsurface damage
Excellent global flatness across the entire substrate

These specifications are critical for maintaining high bonding yield and ensuring efficient heat transfer from the semiconductor device into the diamond heat spreader.

Diamond Polishing Technologies

Because diamond is the hardest known engineering material, conventional polishing methods used for silicon or ceramics cannot be directly applied. Multiple polishing technologies have therefore been developed, each offering different advantages in material removal rate, achievable surface finish, and manufacturing cost.

Mechanical Polishing

Mechanical polishing remains the primary process for bulk material removal and thickness control. The process typically employs a cast-iron polishing plate together with micron-sized diamond abrasives under controlled pressure and rotational speed.

Material removal occurs through micro-cutting combined with localized graphitization of the diamond surface. While removal rates are relatively high, mechanical polishing inevitably introduces subsurface damage, including microcracks, dislocations, residual stress, and crystal defects that may extend several micrometers beneath the polished surface.

Diamond polishing also exhibits significant crystallographic anisotropy. Different crystal orientations possess substantially different polishing rates, making uniform planarization particularly challenging for single-crystal substrates.

Mechanical polishing is therefore primarily utilized as a rough planarization process prior to precision finishing.

Chemical Mechanical Polishing (CMP)

Chemical Mechanical Polishing is the industry standard for achieving semiconductor-grade diamond surfaces.

CMP combines chemical oxidation of the diamond surface with gentle mechanical removal using fine abrasive particles suspended in a chemically active slurry. Oxidizing agents soften the outermost atomic layers of diamond, allowing controlled removal while minimizing mechanical damage.

CMP offers several important advantages:

Atomic-scale surface finish
Extremely low subsurface damage
Excellent surface uniformity
Superior compatibility with wafer bonding

Single-crystal diamond surfaces can routinely achieve roughness below 0.5 nm, while optimized processes for polycrystalline CVD diamond also produce sub-nanometer finishes suitable for advanced packaging.

The primary limitation of CMP is its extremely low material removal rate, typically less than 1 μm/hour. Processing thick CVD diamond substrates exclusively by CMP would require impractically long manufacturing cycles, making CMP most suitable as the final finishing step following bulk planarization.

Plasma Assisted Polishing (PAP)

Plasma Assisted Polishing has emerged as one of the most promising technologies for semiconductor-grade diamond finishing.

In PAP, reactive plasma chemically modifies the outer atomic layers of diamond before light mechanical polishing removes the modified material. Since material removal occurs primarily through surface chemical reactions rather than aggressive abrasion, PAP dramatically reduces subsurface damage while maintaining relatively high polishing efficiency.

Recent developments in atmospheric and microwave plasma polishing have demonstrated atomic-scale surface finishes together with significantly improved removal rates compared with conventional CMP.

For semiconductor applications, PAP offers several important advantages:

Damage-free surface finishing
Sub-nanometer roughness
Improved polishing efficiency
Better preservation of diamond crystal integrity
Excellent suitability for wafer bonding

As plasma technologies continue to mature, PAP is expected to become an important manufacturing solution for next-generation diamond heat spreaders.

Multi-Step Hybrid Processing

No single polishing technology simultaneously delivers high removal rate, low cost, and atomic-scale surface quality. Consequently, semiconductor manufacturing increasingly adopts hybrid processing routes that combine multiple complementary techniques.

A typical process sequence includes:

Laser trimming or leveling to remove large surface height variations.
Mechanical grinding and polishing for bulk material removal.
Precision planarization to improve global flatness.
Plasma-assisted surface modification.
Chemical mechanical polishing to achieve final atomic smoothness.

This multi-step approach significantly shortens overall processing time while maintaining excellent surface quality and minimizing subsurface damage.

Single-Crystal versus Polycrystalline Diamond

Surface finishing challenges differ considerably between single-crystal diamond (SCD) and polycrystalline diamond (PCD).

Single-crystal diamond contains no grain boundaries, enabling extremely smooth atomic surfaces after polishing. The principal challenge arises from crystallographic anisotropy, as polishing behavior varies with crystal orientation. Careful optimization of polishing direction and process parameters is therefore required to achieve uniform material removal.

Polycrystalline CVD diamond presents a more complex polishing problem. Individual grains possess different crystallographic orientations and polishing characteristics, resulting in non-uniform removal rates across the surface. Furthermore, grain boundaries often contain non-diamond carbon phases and microscopic porosity that preferentially polish, producing localized depressions and an "orange peel" surface morphology.

As substrate diameter increases, maintaining uniform flatness across the entire wafer becomes progressively more difficult. Consequently, large-area polycrystalline diamond requires highly optimized polishing processes to satisfy semiconductor packaging specifications.

Surface Quality and Thermal Performance

The relationship between polishing quality and thermal performance extends well beyond cosmetic appearance.

A smoother diamond surface enables:

Larger effective bonding area
Lower interface void density
Reduced thermal boundary resistance
More uniform stress distribution
Improved metallization quality
Higher bonding reliability
Better long-term thermal stability

Even when using ultra-high thermal conductivity diamond, poor interface quality can dominate the overall thermal resistance of the package.

As semiconductor devices continue to become thinner while power density increases, interface thermal resistance represents an increasingly larger percentage of total junction-to-case thermal resistance. Consequently, improvements in surface finish directly translate into lower junction temperatures, higher device reliability, and longer operational lifetime.

Technical Challenges

Despite significant progress, several technical challenges remain in semiconductor-grade diamond polishing.

The first challenge is balancing removal rate with surface quality. High-speed polishing methods generally produce greater surface damage, while atomically smooth polishing processes remove material very slowly.

The second challenge involves eliminating subsurface damage generated during rough machining. Residual defects beneath the polished surface can negatively affect metallization adhesion, wafer bonding strength, and long-term reliability.

A third challenge is maintaining consistent flatness over increasingly larger substrates. As wafer dimensions continue to grow, achieving uniform pressure distribution and material removal becomes considerably more difficult.

Finally, manufacturing cost remains a significant consideration. Precision polishing accounts for a substantial portion of total diamond substrate production cost, creating strong demand for higher-throughput polishing technologies.

DIASEMI Precision Diamond Surface Engineering

At DIASEMI, precision polishing and planarization are treated as critical enabling technologies for high-performance semiconductor thermal management rather than simply finishing operations.

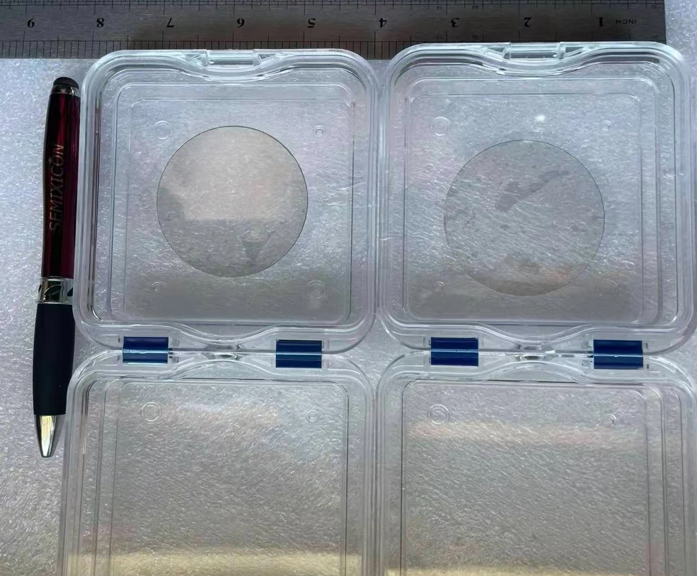

Our manufacturing process combines advanced thickness control, precision planarization, and ultra-fine polishing to produce semiconductor-grade CVD diamond substrates with exceptional surface quality and dimensional accuracy. Process optimization minimizes subsurface damage while maintaining excellent flatness, low TTV, and superior surface uniformity required for advanced packaging technologies.

These precision-engineered surfaces provide an ideal platform for subsequent metallization, direct wafer bonding, solder attachment, and integration with GaN, SiC, and other wide-bandgap semiconductor devices.

Through continuous optimization of polishing processes and surface engineering technologies, DIASEMI delivers diamond heat spreaders that fully realize the exceptional thermal conductivity of CVD diamond while minimizing interface thermal resistance. The result is improved thermal performance, enhanced device reliability, and scalable manufacturing solutions for next-generation AI computing, power electronics, RF systems, photonics, and advanced semiconductor packaging.

The DIASEMI way for Diamond Semiconductor

The future of diamond thermal management depends not only on producing high thermal conductivity materials but also on manufacturing surfaces that enable efficient thermal transfer at the device interface.

Polishing and planarization determine whether the intrinsic thermal performance of diamond can be fully utilized in practical semiconductor applications. As packaging technologies evolve toward direct bonding and increasingly stringent interface requirements, atomic-scale surface finishing will become an essential manufacturing capability rather than an optional refinement.

For next-generation semiconductor thermal management, thermal conductivity defines the theoretical potential of diamond, while precision surface engineering determines its real-world performance. At DIASEMI, advanced polishing and planarization technologies ensure that every CVD diamond heat spreader delivers maximum thermal efficiency, reliability, and integration capability for the most demanding electronic applications.
